A Masterclass on Computer Vision and Roboflow

Dr Sebastian Lopez Marcano

s.lopezmarcano@qcif.edu.au

QCIF Sustainable Futures

April 10, 2025

Objectives and Overview

Acknowledgement of Country

We acknowledge the Turrbal and Yuggera peoples as Traditional Owners of the land we live and work on, and pay respects to Elders past, present and emerging

Why this workshop (WildObs)

WildObs
- A national platform for camera trap monitoring.
- Primary Objective: Staff training - understand computer vision models.
- Secondary Objective: WildObs may want to use Roboflow tools (e.g.,Python SDK) for model development and model deployment.

Why this workshop (DETSI)

DETSI
- Developing an -inhouse- solution for key QLD wildlife species PSP Advance QLD project.
- Primary Objective: Get familiar with Roboflow and understand the theory behind computer vision models.
- Secondary Objective: Roboflow will be used to host and develop a computer vision model for DETSI.

Collaborative effort

Note

DETSI will be contributing datasets to WildObs. DETSI intends to use WildObs.

Modules Overview

Module 1: AI, Deep Learning, and Computer Vision
Module 2: Understanding the computer vision workflow
Module 3: Building your model development dataset
Module 4: Model training and evaluation
Module 5: Model inference
Module 6: Roboflow ‘workflows’

Module 1: AI - DL - CV

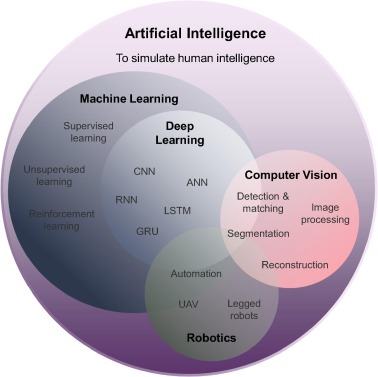

A visual representation of AI, ML, DL, and CV

What is Deep Learning?

A subset of Machine Learning to train neural networks and make predictions

What is Computer Vision?

A field of AI that enables computers to interpret and understand visual information
Key applications: classification, object detection and segmentation

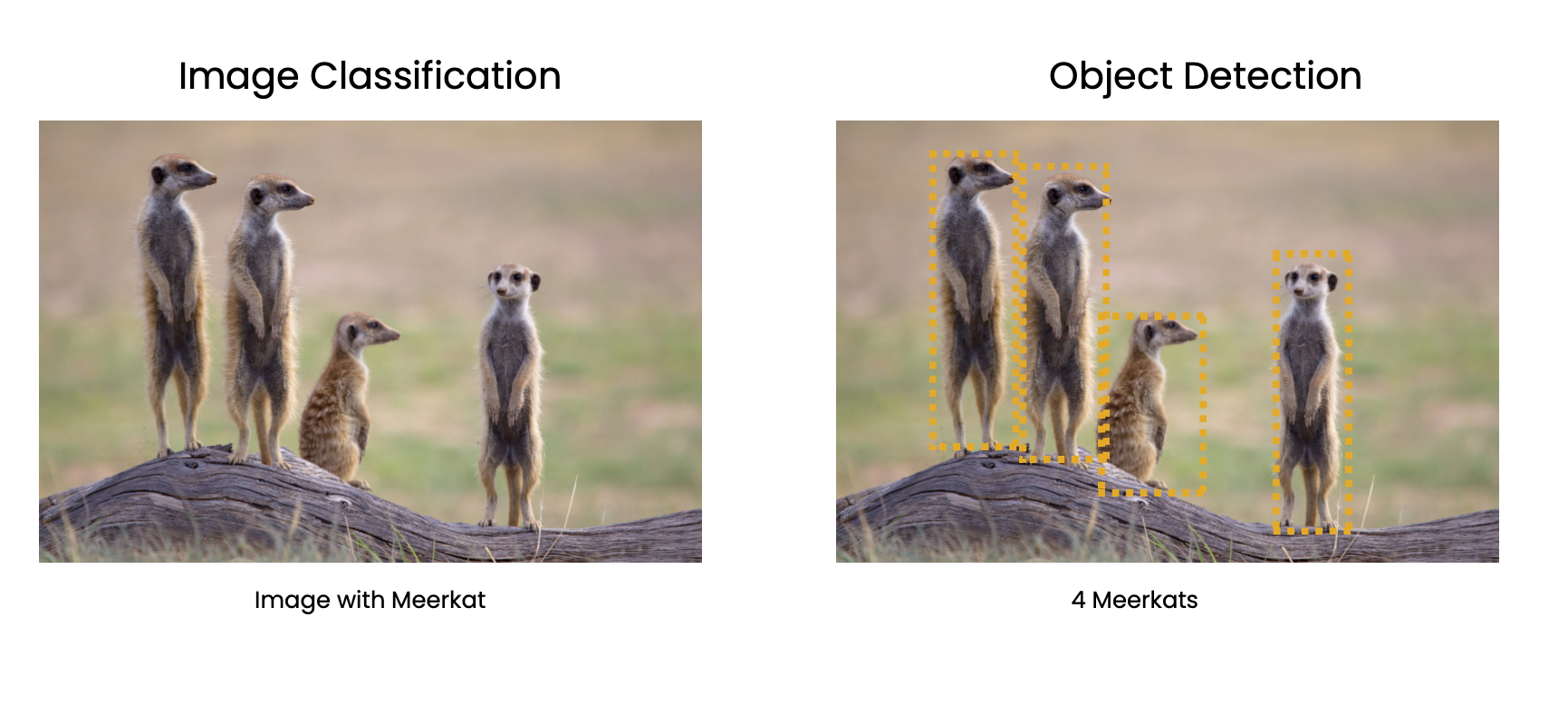

Computer vision tasks

Image Classification: Assigns a label to an entire image (e.g., “possum”, “animal”)
Object Detection: Identifies and localizes multiple objects within an image (e.g., “cat” at (x,y) coordinates, “dog” at (x,y) coordinates)

MegaDetector is a generic object detector

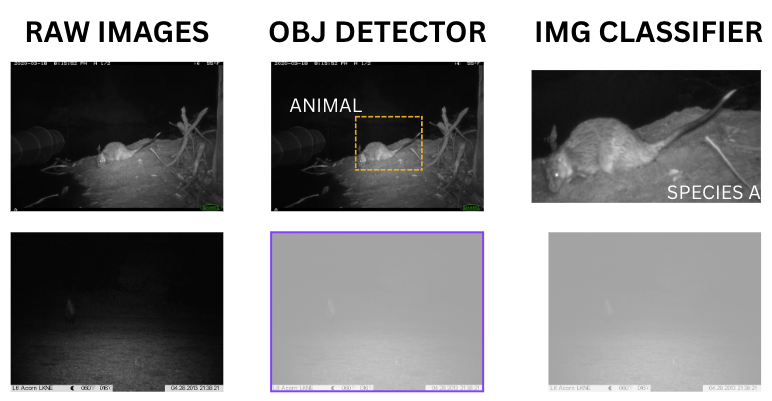

CV tasks in the context of camera trap monitoring

Module 2: Understanding the computer vision workflow

Key Steps ✨with the Roboflow sparkle✨

Objective and infrastructure
Data collection and pre-processing
Create account and project
Data splitting
Data upload
Data annotation
Building your model development dataset
Model training
Model evaluation
Model inference
Post-processing

Objective and Infrastructure

Objective: Define the problem you want to solve (e.g., species identification, behavior analysis)
- How many classes?
- What is the expected accuracy?
- What is the long-term goal?
Infrastructure: Determine the hardware and software requirements for your project
- GPU/CPU requirements
- Storage capacity

🪜Data collection and pre-processing

Data Collection: Camera traps
Data Pre-processing: Cleaning and preparing data for further analysis
- Rename files
- Move files to appropriate folders

🪜Create account and project

Let’s go to Roboflow!
Create a Roboflow account
Create a new project
- Project name
- Project type (remember the different computer vision tasks)
- Project visibility (public or private)
- License (e.g., CC-BY, CC-BY-NC)

Important

Roboflow is free to use, but has some limitations. Private projects are only available for paid users.

🪜 Data Splitting Part 1

Now we need data to add into our project
- Model development dataset (e.g., training, validation, evaluation)
- Inference dataset

Note

Depending on the dataset size, the model development dataset can be between 10-20% of the entire dataset.

Data Splitting Part 2 : Broad types of data selection

Computer vision researchers -> Random selection
Env computer vision researchers -> Targeted selection

Important

The data splitting process is crucial and takes time.

Important

The model development dataset should be representative of the data that will be processed in the field / future. Variability is key.

Data Splitting Part 3: Importance of metadata

Metadata is crucial for understanding the context of the images and ensuring that the model is trained on relevant data.

Model trained on images from 🏖️ will not be accurate when deployed in 🏞️

Model trained on images collected during ☀️ hours will not be accurate when processing images collected at 🌝

For a single location, a model trained on images collected in year 1 will not be accurate when processing images collected in year 2

Data Splitting Part 4: Relationship between objectives - metadata and data splitting

This is why its important to determine your objectives at the beginning of the project
Questions that require answers?
- How many classes?
- How many ecosystems / locations?
- How many seasons / years?

Data Splitting Part 4: Relationship between objectives - metadata and data splitting

20 classes
3 ecosystems
2 seasons

Note

Let’s use a conservative 1,500 images per class

| Ecosystem   | Year 1 | Year 2 | Total |
|-------------|--------|--------|-------|
| Ecosystem 1 | 250    | 250    | 500   |
| Ecosystem 2 | 250    | 250    | 500   |
| Ecosystem 3 | 250    | 250    | 500   |
| Total       | 750    | 750    | 1,500 |

Data Splitting Part 5: How many images do I need?

https://joelnadarai.medium.com/the-art-of-choosing-the-right-number-of-images-for-your-computer-vision-project-6e45efd1efbf#:~:text=For%20fine%2Dtuning%20pre%2Dtrained,per%20class%20for%20detection%20tasks.

In my experience, there is no magic number.

Data Splitting Part 6: What to do with class imbalance?

Class imbalance: When one class has significantly more images than another
Solutions:
- Merging classes
- Data augmentation
- Data filtering
- Data collection

Data Splitting Part 7: Class imbalance example

| Class         | Number of Images | Notes                             |
|---------------|------------------|-----------------------------------|
| Kangaroo      | 1,200            | Overrepresented                   |
| Skink         | 300              | Underrepresented                  |
| Emu           | 150              | Severely underrepresented         |
| Wombat        | 800              | Moderately represented            |
| Possum        | 100              | Severely underrepresented         |
| Dingo         | 600              | Balanced                          |
| Echidna       | 50               | Rarely detected                   |
| Cockatoo      | 1,000            | Overrepresented                   |
| Platypus      | 20               | Extremely rare                    |
| Wallaby       | 700              | Balanced                          |

Module 3: Building your model development dataset

Recap Steps ✨with the Roboflow sparkle✨

Objective and infrastructure ✅
Data collection and pre-processing ✅
Create account and project ✅
Data splitting ✅
Data upload 👈🏼
Data annotation
Building your model development dataset
Model training
Model evaluation
Model inference
Post-processing

🪜 Data upload part 1

Lets use the sample_camera_trap_images dataset as an example

Upload images to Roboflow
- Batch Name 🗒️
- Use a name that makes sense for later filtering
- Tags 🏷️
- Use tags that can help break down the data (e.g., ecosystem, year, season)
Similar images from Object365
- 💡 Be careful with the license and introducing unwanted bias

Upload images to Roboflow (Python SDK)

from roboflow import Roboflow

# Initialize the Roboflow object with your API key
rf = Roboflow(api_key="YOUR_PRIVATE_API_KEY")

# Project:https://app.roboflow.com/my-workspace/my-project
workspaceId = 'my-workspace'
projectId = 'my-project'
project = rf.workspace(workspaceId).project(projectId)

# Upload the image to your project
project.upload("UPLOAD_IMAGE.jpg")

Data upload part 2

Tip

Upload images in batches that make sense for your project. My tip: upload images based on initial data splitting.

Tip

Always keep an eye on your Roboflow limits.

Data upload part 3

Roboflow also has Roboflow Universe
- A collection of datasets and models that can be used for training and evaluation
- Can be used to augment your dataset
- For WildObs: The best version of what a tagged image repository should look like
Lets go to this link https://universe.roboflow.com/vijay-vikas-mangena/ostrich_cocotodarknet
- This will create a new project

🪜 Data annotation part 1

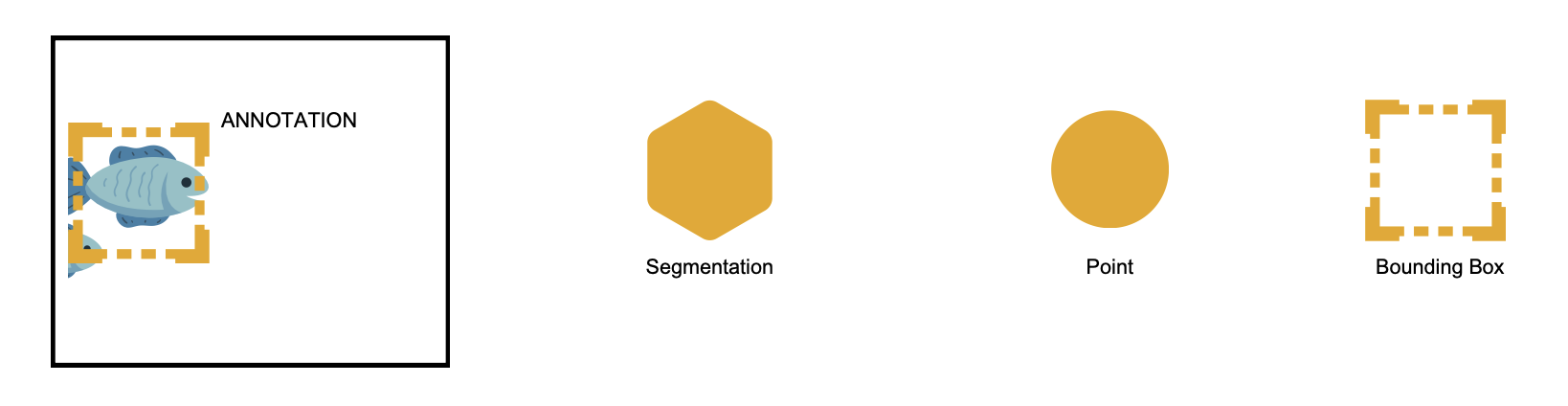

Annotation types

Data annotation part 2

Labelling images in Roboflow
- Auto Label
  - Grounding DINO
  - My Models (e.g., MegaDetector or SpeciesNet)
    - Roboflow trained models
    - Upload via API ⭐️
  - Importance of confidence threshold when using zero-shot models
- Manual Label

Data annotation part 3

Labelling images in Roboflow
- Auto Label
- Manual Label
  - Review (Approve or Reject)
  - Manual bbox
  - Smart labelling
  - Bounding box prompting

Tip

Label every relevant object in every image, even if it’s partially visible - Roboflow

Important

You can always import labels from other tools / models / projects for images into Roboflow

🪜 Building your model development dataset

Training: Used to train the model - 70% of model development data
Validation: Used to tune hyperparameters and prevent overfitting - 10% of model development data
Evaluation: Used to assess the model’s performance on unseen data - 20% of data of model development

Tip

Reminder: Upload images in batches that make sense for your project. My tip: upload images based on initial data splitting.

Note

Sometimes researchers use a further ‘test’ dataset. A harder dataset to do a final query on the model’s performance.

Building your model development dataset - an example

Remember this is for 1 class

| Ecosystem   | Year 1 (Train) | Year 2 (Train) | Year 1 (Val) | Year 2 (Val) | Year 1 (Test) | Year 2 (Test) | Total |
|-------------|----------------|----------------|--------------|--------------|---------------|---------------|-------|
| Ecosystem 1 | 175            | 175            | 25           | 25           | 50            | 50            | 500   |
| Ecosystem 2 | 175            | 175            | 25           | 25           | 50            | 50            | 500   |
| Ecosystem 3 | 175            | 175            | 25           | 25           | 50            | 50            | 500   |
| Total       | 525            | 525            | 75           | 75           | 150           | 150           | 1,500 |

Module 4: Model training and evaluation

Recap Steps ✨with the Roboflow sparkle✨

Objective and infrastructure ✅
Data collection and pre-processing ✅
Create account and project ✅
Data splitting ✅
Data upload ✅
Data annotation ✅
Building your model development dataset ✅
Model training 👈🏼
Model evaluation
Model inference
Post-processing

🪜Model training

Create a dataset version
- Data augmentation
- Data filtering
Select a model architecture
- Comments around RF-DETR

Download the dataset version (Python)

from google.colab import userdata
from roboflow import Roboflow

ROBOFLOW_API_KEY = userdata.get('ROBOFLOW_API_KEY')

rf = Roboflow(api_key=ROBOFLOW_API_KEY)
project = rf.workspace("selencakmak").project("tumor-dj2a1")
version = project.version(1)
dataset = version.download("yolov8")

Train the model (CLI)

!yolo task=detect mode=train epochs=50 batch=32 plots=True \
model={HOME}/weights/yolov10n.pt \
data={dataset.location}/data.yaml

I highly recommend you learn about batches and epochs

🪜Model validation - evaluation

Two different things
Validation: Assess the model’s performance on the validation set during training
- Monitor metrics like loss and accuracy
- Adjust hyperparameters to improve performance
Evaluation: Assess the model’s performance on the evaluation set after training

Model validation and evaluation - metrics

Precision: The ratio of true positive predictions to the total predicted positives
Recall: The ratio of true positive predictions to the total actual positives
F1 Score: The harmonic mean of precision and recall

Understanding validation and evaluation results

Lets review these outputs in Roboflow

Note

We will not be able to cover how to review these metrics in a programmatic environment

Module 5: Model inference

Recap Steps ✨with the Roboflow sparkle✨

Objective and infrastructure ✅
Data collection and pre-processing ✅
Create account and project ✅
Data splitting ✅
Data upload ✅
Data annotation ✅
Building your model development dataset ✅
Model training ✅
Model evaluation ✅
Model inference 👈🏼
Post-processing

🪜Model inference

Inference: The process of using a trained model to make predictions on new, unseen data
Let’s use the Deployments tab in Roboflow to deploy our model

🪜Post-processing

Not going to go in depth here
Confidence threshold
Non-max suppression
Tracking

Example of a computer vision output dataset

Below is an example of a classic computer vision (object detection) dataset structure:

| Filename     | Class      | xmin | xmax | ymin | ymax | Confidence |
|--------------|------------|------|------|------|------|------------|
| image1.jpg   | kangaroo   | 50   | 150  | 60   | 160  | 0.95       |
| image2.jpg   | possum     | 30   | 130  | 40   | 140  | 0.20       |
| image3.jpg   | bird       | 100  | 200  | 120  | 220  | 0.92       |
| image4.jpg   | cat        | 70   | 170  | 80   | 180  | 0.97       |
| image5.jpg   | dog        | 20   | 120  | 30   | 130  | 0.85       |
| image6.jpg   | bird       | 90   | 190  | 110  | 210  | 0.90       |

In most cases you will get results as a JSON file or individual txt files (for each image). You will spend some time doing data wrangling.

Module 6: Roboflow workflows

Workflows to assist development

Build your model development dataset quickly
- Upload images
- Use MegaDetector or SpeciesNet
- Auto-assign labels
- Auto-data splitting
- Training - Evaluation

Recap of Modules

Module 1: AI, Deep Learning, and Computer Vision
- computer vision tasks
Module 2: Understanding the computer vision workflow
- importance of data splitting
Module 3: Building your model development dataset
- annotations and dataset versioning
Module 4: Model training and evaluation
- Different ways to train a model and evaluate it
Module 5: Model inference
- Post-processing and data wrangling
Module 6: Roboflow workflows
- Workflows to assist development
